Fire Hose Cabinet 25 mm and 20 m. WRAN 5.7
Closet | Dimensions: 700 x 500 x 230. White sheet and painted in polyester. Integral hinge and knob lock. Detachable 625 x 410 mm methacrylate. |
Reel | With reversible input. Red RAL 3002 of 450 mm fixed. Polyamide collector – fiberglass, anti-corrosion. |
Hose | 25 mm and 20 meters long, manufactured according to EN 694:2001 and AENOR certificate. Model SATUR-25. |
Valve |
Seat valve with output at 110o and 1″ thread, with check part for the pressure gauge. |
Nozzle |
Variomatic 25 mm triple effect and 1″ female thread. Equivalent diameter of 10 mm. |
Pressure gauge |
With 1/4″ GAS thread. Scale 0-16 kg/cm2. |
Guiding device |
For easy hose deployment in any direction. |
Models available
Reference | Closet | Door |
---|---|---|
WRAN5.7 | Red | Red methacrylate |
WRAN5.7PC | Red | Red blind |
WRAN5.71115 | Red | Stainless steel methacrylate |
WRAN5.7PC1115 | Red | Stainless steel blind |
WRAN5.71515 | Stainless steel | Stainless steel methacrylate |
WRAN5.7PC1515 | Stainless steel | Stainless steel blind |
Possibility of modular system. Fire Extinguisher Cabinet and Manual Pushbutton

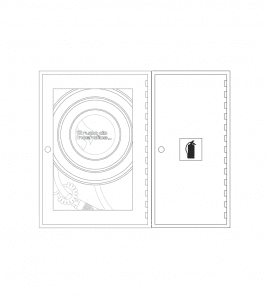

Fire extinguisher cabinet for horizontal system
Reference | Closet | Door |
---|---|---|
AEB70WRPC | Red | Red blind |
AEB70WRPCI | Red | Stainless steel blind |
AEB70WRPCTI | Stainless steel | Stainless steel blind |
Armario de extintor doble
Reference | Closet | Door |
---|---|---|
AEBWDOB | Red | Red methacrylate |
AEBWDOBPC | Red | Red blind |
AEBWDOBPI | Red | Stainless steel methacrylate |
AEBWDOBPCI | Red | Stainless steel blind |
AEBWDOBTI | Stainless steel | Stainless steel methacrylate |
AEBWDOBPCTI | Stainless steel | Stainless steel blind |
Alarm pushbutton for vertical system
Reference | Closet | Door |
---|---|---|
MAVWRAN | Red | Red blind |
MAVWRANPI | Red | Stainless steel blind |
MAVWRANTI | Stainless steel | Stainless steel blind |

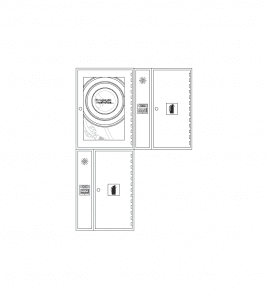

Fire Extinguisher cabinet + Alarm pushbutton for vertical or horizontal system
Reference | Closet | Door |
---|---|---|
WRAN/3 | Red | Red blind |
WRAN/31115 | Red | Stainless steel blind |
WRAN/31515 | Stainless steel | Stainless steel blind |
