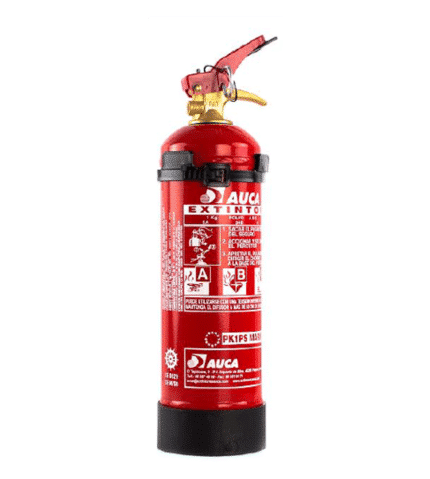

Extinguisher of 1 kg of marine powder. Efficiency 5A 34B C. AUCA PK1PS model.
Extinguisher of 1 kg dry chemical powder for marine and inner auxiliary pressure. AUCA manufacturer’s 5A 34B C efficiency.
- Directive PED 97/23 EC. No. 01/SP/143. Type 3.
- Transport. MY EXo 0373 IV V.
Features of AUCA’s PK1PS marine powder 1 kg extinguisher.
Body
High quality steel consists of two deep mountings and bushing.
- Test pressure: PT x 27 bar.
- Volume: V x 1.08 l.
- Vessel Diameter: D x 80 mm.
Coating
Outer protection: blasting and polymerized epoxy-polyester coating at 220ºC, fire red R-3000.
Valve and diffuser
Valve with brass body, which also carries a safety ring, a seal, an opening and control lever in steel, and a tapered diffuser of laminar flow.
Dust firing length: L x 3 m.
Fire extinguishing type |
1 kg powder |
Download time |
7 sec |
Propulsion gas |
Co2 |
Service pressure |
14 bar at 20ºC PS max 16 bar |
Temperatua of use |
+20ºC +60ºC |
Dimensions |
Height: 340 mm – Width: 110 mm – Length: 90 mm |
Weight |
2.1 kg |
Efficiency |
5A 34B C |
