Fire Hose Cabinet IMAX
€770,78 + IVA
Fire Hose Cabinet BIE 25 mm – 20 meters hose IMAX. Fixed reel/dryer. Fire group.
*Los productos no incluyen gastos de transporte y los precios son exclusivos online.
Descripción
https://www.serior.com/bie-25-20-imax
Fire Hose Cabinet 25 mm – 20 m. Fixed reel/dryer. Imax
| Cabinet dimensions | 750mm high x 600mm wide x 195mm bottom |
| Arc dimensions |
820 mm x 710 mm |
| Cabinet material |
DC01 steel painted in RAL9010 polyester and die-cut inlet for pipe connection. Integral hinge and ABS lock. |
| Reel |
Made of DC01 steel. Fixed 525 mm. Painted in Red RAL 3000. It has polyamide and fiberglass collector, anthocorration and friction resistant. Support with reversible input |
| Hose |
20 meters semi-rigid hose 25 mm diameter. Manufactured According to EN 694:2001 and Certified by AENOR. Model SATUR-25. |
| Valve |
25″s sphere type and 1″ thread. Comes with part for pressure measurement with pattern gauge. |
| Nozzle | 25 mm Variomatic model, triple effect (jet, tapered spray and closure) and 1″ female thread, 10 mm equivalent diameter |
| Pressure gauge | With 1/4″ GAS thread. 0-16 kg/cm². |
Models available
| Reference | Closet | Door |
|---|---|---|
| IMAX | Beige | Beige methacrylate |
| IMAXPC | Beige | Beige blind |
| IMAX1215 | Beige | Stainless steel methacrylate |
| IMAXPC1215 | Beige | Stainless steel blind |
| IMAX1515 | Stainless steel | Stainless steel methacrylate |
| IMAXPC1515 | Stainless steel | Stainless steel blind |
Possibility of modular system. Fire extinguisher cabinet and alarm pushbutton

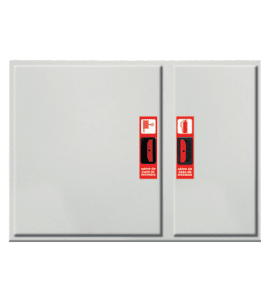

FHC IMAX + Fire Extinguisher cabinet for horizontal system
| Reference | Closet | Door |
|---|---|---|
| IMAX2HPC | Beige | Beige blind |
| IMAX2HPC2215 | Beige | Stainless steel blind |
| IMAX2HPC2515 | Stainless steel | Stainless steel blind |

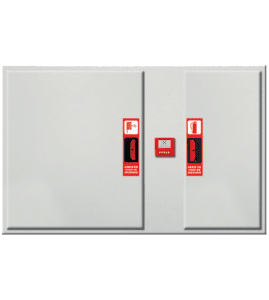

FHC IMAX + Extinguisher Cabinet + Alarm Pushbutton for Horizontal System
| Reference | Closet | Door |
|---|---|---|
| IMAX3HPC | Beige | Beige blind |
| IMAX3HPC3215 | Beige | Stainless steel blind |
| IMAX3HPC3515 | Stainless steel | Stainless steel blind |

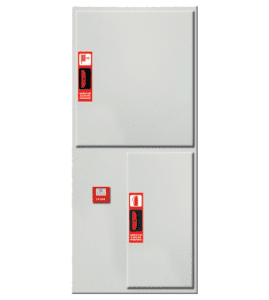

FHC IMAX + Extinguisher Cabinet + Alarm Pushbutton for Vertical System
| Reference | Closet | Door |
|---|---|---|
| IMAX3VPC | Beige | Beige blind |
| IMAX3VPC3215 | Beige | Stainless steel blind |
| IMAX3VPC3515 | Stainless steel | Stainless steel blind |

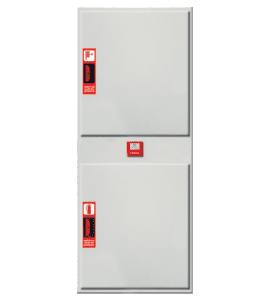

FHC IMAX + Dual extinguisher cabinet + Alarm pushbutton for vertical system
| Reference | Closet | Door |
|---|---|---|
| IMAX3WPC | Beige | Beige blind |
| IMAX3WPC3215 | Beige | Stainless steel blind |
| IMAX3WPC3515 | Stainless steel | Stainless steel blind |
Información adicional
| Pulsador | No, Horizontal, Vertical |
|---|---|
| Armario extintor | No, Horizontal, Vertical, Double |
