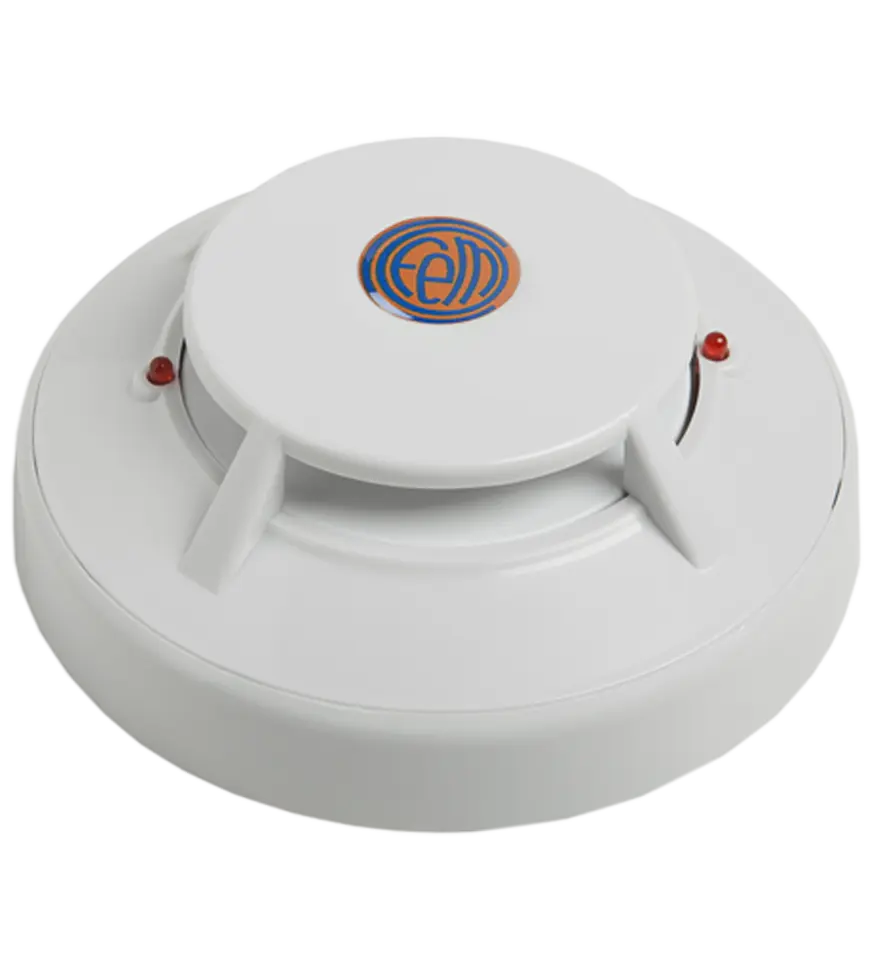

A30XT Thermal Detector
€8,37 – €10,05 + IVA
Conventional fire thermal detector model A30XT from manufacturerCOFEM. For conventional fire plant.
*Los productos no incluyen gastos de transporte y los precios son exclusivos online.
Descripción
https://www.serior.com/detector-termico-a30xt
Conventional thermal detecot for fire detection. A30XT
The manufacturer’s conventional A30XT thermal detector, COFEM,is a device that allows us to detect an alarm signalwhen the sensitive element detects a temperature that exceeds 55oC
- We can install it with a low socket,whose height will be 45 mm, or install a high base for seen tube.
- It has a double alarm LED.
- Allows us to connect to a remote indicator
- There is no polarity in the connection
- Complies with UNE EN-54 Part 5, Class A2 and CE marking standards.
Technical specifications of the A30XT thermal detector
| Power |
12 – 30 V |
| Consumption in surveillance |
40 µA – 18 V |
| Consumption in alarm |
40 mA – 18 V |
| Activation indicator |
Double red LED |
| Remote indicator output |
Yes |
| Moisture |
20 – 95% RH |
| Temperature |
-10ºC +50ºC |
| Sensitivity |
According to EN-54-5 class A2 |
| IP protection |
IP 20 |
